Aperçu /Produits/Machine de soudure de vague de SMT/In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder

1 ensemble
MOQ
Négociable
Prix
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Pression de N2 requise: 0,4-0,6 MPA
Nom de produit: HRX-31D Souderie d'ondes sélectives en ligne
Catégorie de produits: Machine de soudure à ondes sélectives SMT
Poids net: 2500 kg
Axe de positionnement: X, Y, Z
Dimension: L4193 x W1645 X H1630mm
Taille maximale du support: L580 x w460 mm
Méthode de préchauffage: Préchauffage de l'air chaud supérieur; Préchauffage infrarouge à ondes courtes inférieures
Mettre en évidence:

selective wave soldering machine HRX-31D

,

two pot selective solder machine

,

SMT wave soldering machine with warranty
Informations de base
Lieu d'origine: CHINE
Nom de marque: HONREAL
Certification: CE
Numéro de modèle: HRX-31D
Documents: Honreal--Double module sele...p).pdf
Conditions de paiement et expédition
Détails d'emballage: basse-bois
Délai de livraison: 45 jours de travail
Conditions de paiement: L / C, T / T, Western Union
Capacité d'approvisionnement: 100sets / mois
Description de produit
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder
High Productivity In-line Selective Soldering Machine HRX-31D

Advanced selective soldering solution with high efficiency and quality performance.

Key Advantages
  • Fully functional online model with spray, preheating and welding three-stage configuration
  • Segmented independent PCB transport guide for improved production efficiency
  • High welding quality with improved pass rate
  • Comprehensive preheating system with lower IR, upper hot air, and upper IR heat compensation
  • Modular SMEMA online transportation design for flexible line formation
  • Full PC control with parameter saving capability for repeatable soldering quality
Technical Specifications
Parameter Value
Equipment type HRX-31D
Machine size L4193 x W1645 x H1630mm
Total machine power 35kw
Machine operating power 9-12kw
Power source Three-phase five-wire system 380V
Net weight 2500KG
Air source pressure requirements 0.4~0.6Mpa
Nitrogen source pressure requirements 0.4~0.6Mpa
Nitrogen source flow requirements ≥4 cubic/hour
Nitrogen source purity requirements ≥99.999%
Communication interface SMEMA
Transport Module Specifications
Feature Specification
Maximum PCB size L508 x W460mm
PCB board edge More than 5mm
Transport direction Horizontal from left to right
Headroom on PCB board 120mm
PCB board bottom clearance 60mm
Transport bearing capacity ≥10Kg
Transport height 900±30mm
Software Features
  • Independent software system with complete intellectual property rights
  • Live solder process display via camera
  • Critical parameter monitoring (temperature, speed, pressure)
  • Offline programming capability
  • Multiple programming methods (Gerber, camera scanning, PCBA scanning)
  • Automatic wave peak height correction
  • Comprehensive PCB menu storage for historical data tracking
  • LOG function with 3-level access rights
Support and Services

Our SMT Selective Wave Soldering Machine requires minimal maintenance but comes with comprehensive support:

  • Remote technical assistance via phone or email
  • On-site support services including installation, training, and maintenance
  • Dedicated technical team for peak performance optimization

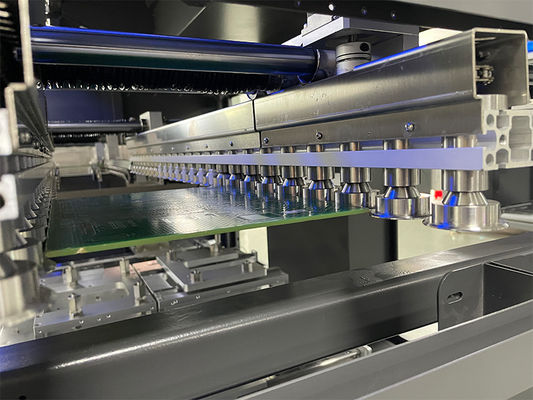

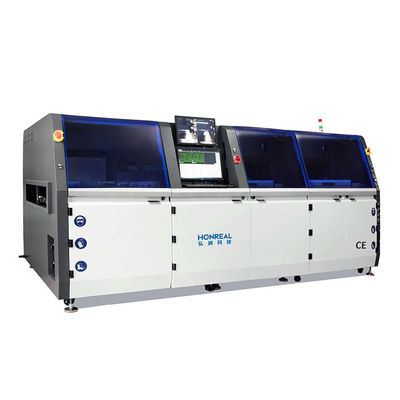

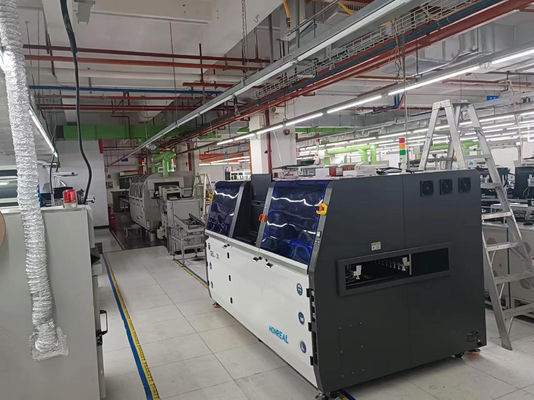

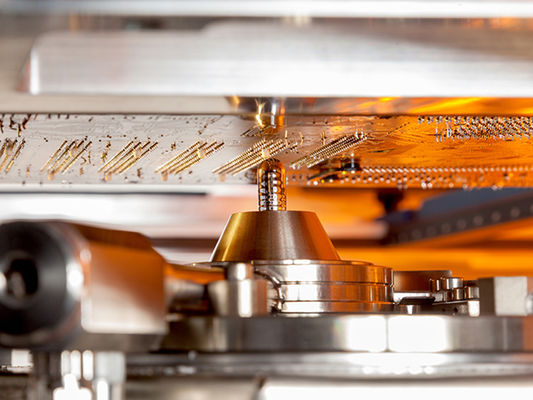

In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder 0 In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder 1
Company Information

Shenzhen Honreal Technology Co., Ltd. is a national high-tech enterprise specializing in SMT equipment research, development, production, and sales. We serve top global electronic companies with our experienced technical team and innovation capabilities.

Honorary Customers
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder 2
Contact Us
In Line One-Piece Type 2 Modules Selective Wave Soldering Machine HRX-31D Two Independent Pot Selective Solder 3
